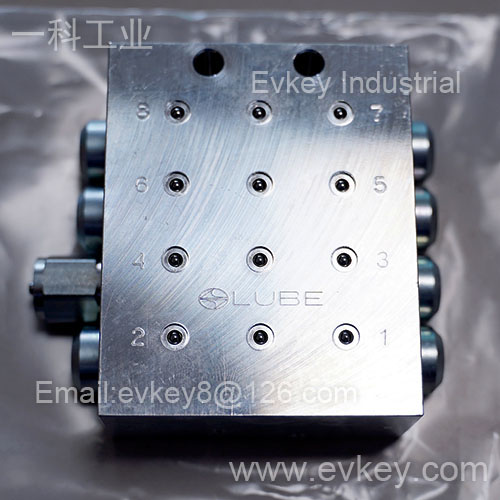

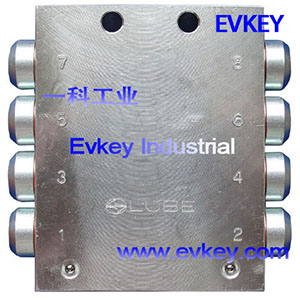

Series Progressive Valve

SP-4K,SP-6K,SP-6S,SP-8K,SP-8S,SP-10K,SP-10S,SP-12K,SP-12

SP-4K, 205530; SP-4, 205540
SP-6K, 205531; SP-6, 205541
SP-6S, 205536;
SP-8K, 205532; SP-8, 205542
SP-8S, 205537

SP-10K, 205533; SP-10, 205543
SP-10S, 205538
SP-12K, 205534; SP-12, 205544
SP-12S, 205539

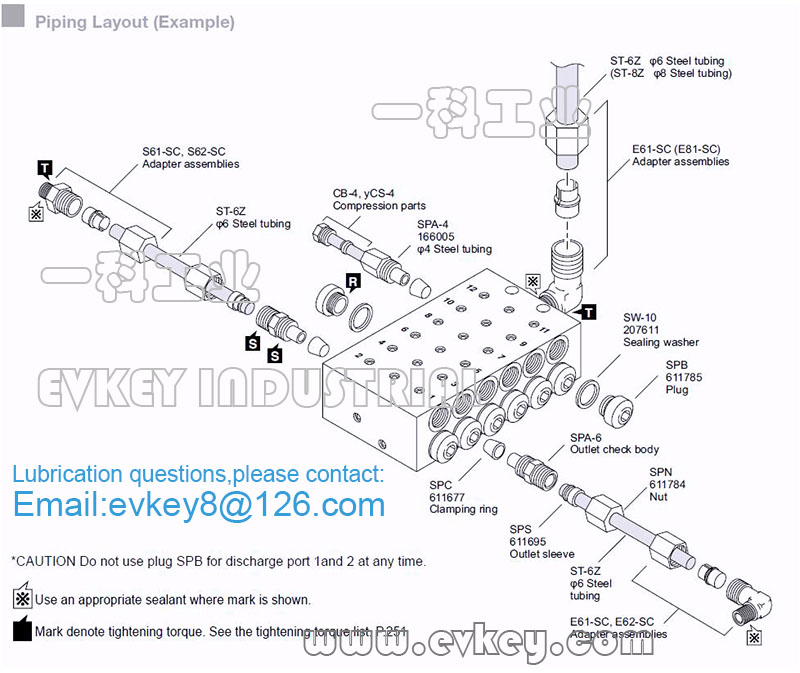

SPB, 611785; SW-10, 207611
SPC, 611677; SPA-6, 619780
SPS, 611695; SPN, 611784
SPA-4, 166005

SP is mono style progressive metering blocks, and a piston-type metering device which reliably dispenses lubricant to each point on the machine. The mono style of fixed displacement, and the flexibility of combining outlets provides a large variety of metering possibilities. Monitoring can be done visually with a pin movement or electronically with a proximity sensor.

Discharge volume 0.2mℓ/stroke ;Discharge port 6mm or 4mm tube
Grease inlet Rc1/8 ;Max. working pressure 20MPa
Minimum operating pressure 2MPa ;Working consistency NLGI No.000-2
Performance monitor Indicator pin (K type)
Material SP:Aluminum
