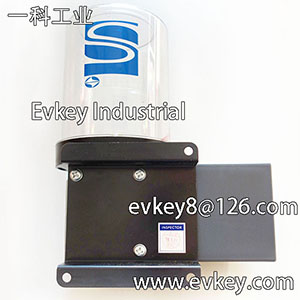

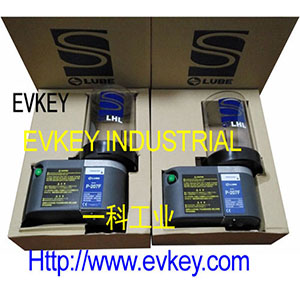

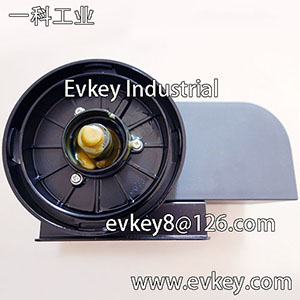

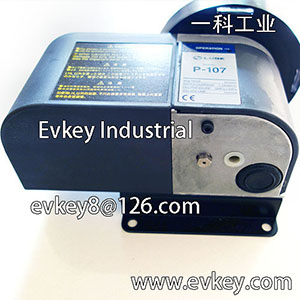

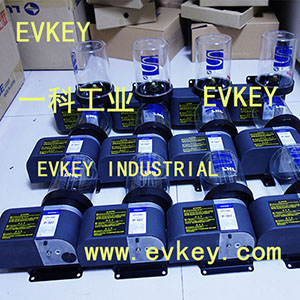

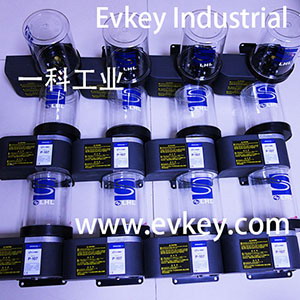

LHL专用电动油脂泵P-102,P-107,P-202,P-207
海天,住友,富强鑫甬华机床
LUBE Electric Pump for LHL P-102/107/202/207

P-102(BK),101002, P-102(B),101006, P-102(G),101008, P-102F2(BK),101082, P-102F2(B),101086, P-102F2(G),101088

P-107(BK),101003, P-107(B),101007, P-107(G),101009, P-107F2(BK),101083, P-107F2(B),101087, P-107F2(G),101089

P-202(BK),101032, P-202(B),101036, P-202(G),101038, P-207(BK),101033, P-207(B),101037, P-207(G),101039

P-202F(BK),101042, P-202F(B),101046, P-202F(G),101048, P-207F(BK),101043, P-207F(B),101047, P-207F(G),101049

电源DC24V,消费电力24W
吐出量7mℓ/min,吐出压力5MPa／8MPa
运转时间接线通电,停止时间10秒以上
接线方法端子台,插接式开关有（选装）,油位开关有
盖子阻燃树脂(UL94-V0),IP规格IP54,CE规格有,油泵排气无运行时间限制
重量P-102:1.2kg、107:1.6kg、202:1.2kg、
207:1.6kg

正确使用方法
●使用油脂：LHL - X 100
●请您使用本公司专用油脂（LHL - X 100）。
●认证标准：IP 54
●油脂更换时请充分地注意异物混入。
●请不要连续运行。
●油脂更换后，一定要松开排气阀进行排气。

Power DC24V,Power Consumption 24W,Discharging pressure 5MPa/8MPa
Discharging time No restriction
Minimum interval time 10 seconds,Wiring method Terminal connection
Manual override switch Yes (Optional),Grease level switch Yes
Cover Non combustible plastic (UL94-V0),NEMA rating IP54,CE approval Yes
Pump air bleeding valve Yes,
Weight P-102:1.2kg, 107:1.6kg, 202:1.2kg,207:1.6kg

Directions for use
Use LUBE original LHL cartridge only.
When the cartridge is changed, take care that foreign
particles are not getting inside.
Do not discharge continuously.
After changing the cartridge, bleed the air inside the
pump by opening the air bleeding valve.
